Cisco CCNA 9.4.1.2 模拟练习

万事开头难(x

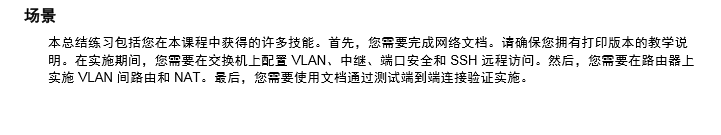

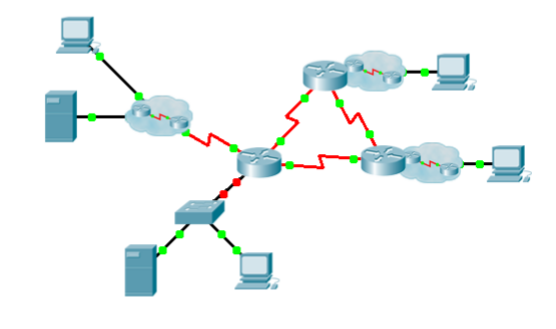

网络拓扑

嗯开始写就是了

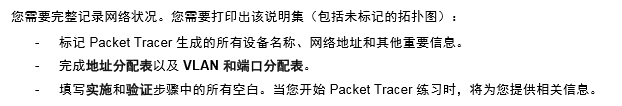

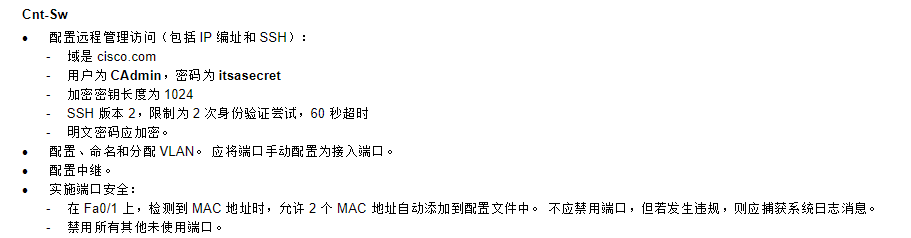

#### Cnt-Sw 交换机 ##### 任务

-[6] 配置远程访问管理

en
conf t
ip domain-name cisco.com
username CAdmin password itsasercret
crypto key generate rsa
1024
ip ssh version 2
ip ssh authentication-retries 2
ip ssh time-out 60
line vty 0 15
login local
transport input ssh
exit
service password-encryption

-[10] 配置、命名和分配 VLAN。应将端口手动配置为接入端口。

vlan 15
name Servers
vlan 30
name PCs
vlan 45
name Native
vlan 60
name Management
int range f0/11-20
switchport mode access
switchport access vlan 15
int range f0/1-10
switchport mode access
switchport access vlan 30
int range f0/1-10
switchport mode access
switchport access vlan 30
int range f0/1-10
switchport mode access
switchport access vlan 30
int vlan 60
ip address 192.168.45.34 255.255.255.240
exit
ip default-gateway 192.168.45.33

[3]配置中继。(configure trunking)

 int g 0/1
 switchport mode trunk
 switchport trunk native vlan 45

[5]实施端口安全

int f0/1
switchport port-security
switchport port-security maximum 2
switchport port-security mac-address sticky
switchport port-security violation restrict
int range f0/21-24
shutdown
int g0/2
shutdown

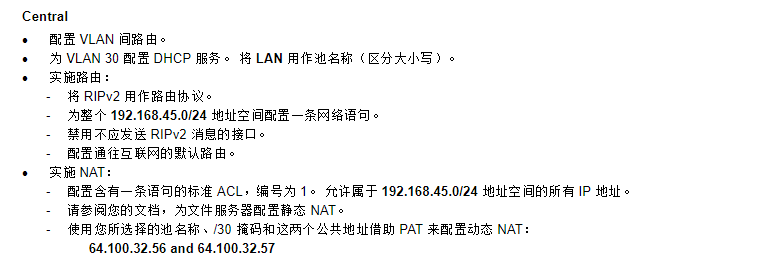

配置Central路由器

Snipaste_2020-04-10_14-07-07

[]配置vlan间路由

 enable
 conf t
 int g 0/0
 no shutdown
 int g0/0.15
 encapsulation dot1q 15
 ip address 192.168.45.65 255.255.255.192
 int g0/0.30
 encapsulation dot1q 30
 ip address 192.168.45.129 255.255.255.192
 int g0/0.45
 encapsulation dot1q 45 native
 ip address 192.168.45.17 255.255.255.240
 int g0/0.60
 encapsulation dot1q 60
 ip address 192.168.45.33 255.255.255.240
 exit

[]为 VLAN 30 配置 DHCP 服务。将 LAN 用作池名称（区分大小写）。

ip dhcp pool LAN
network 192.168.45.128 255.255.255.192
default-router 192.168.45.129
exit

[]实施路由

route rip
version 2
no auto-summary
network 192.168.45.0
passive-interface s0/1/0
passive-interface g0/0
default-information originate
exit
ip route 0.0.0.0 0.0.0.0 s0/1/0

[]实施 NAT

access-list 1 permit 192.168.45.0 0.0.0.255
ip nat inside source static 192.168.45.66 64.100.32.58
ip nat pool PAT  64.100.32.56  64.100.32.57 netmask 255.255.255.252
ip nat inside source list 1 pool PAT overload
int g0/0.15
ip nat inside
int g0/0.30
ip nat inside
int s0/0/0
ip nat inside
int s 0/0/1
ip nat inside
int s0/1/0
ip nat outside
